  2. Ubiquiti UniFi Protect UNVR-Instant-Kit Network Video Recorder Instant Kit (inc. 4 x G5 Turret Ultra Cameras + 1TB HDD)

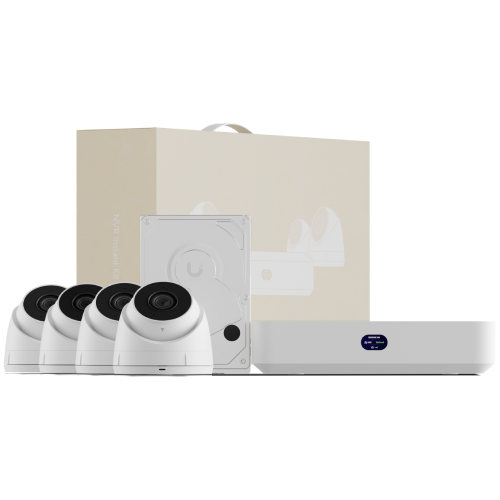

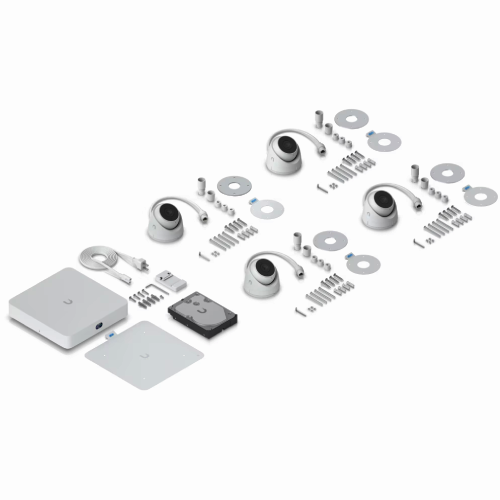

Ubiquiti UniFi Protect UNVR-Instant-Kit Network Video Recorder Instant Kit (inc. 4 x G5 Turret Ultra Cameras + 1TB HDD)

Stock Code UNVR-INSTANT-KIT

4 in Stock (UK)
Out of Stock (NL)

HS Code: 851770000

Related Categories:

Ubiquiti

Specifications for Ubiquiti UniFi Protect UNVR-Instant-Kit Network Video Recorder Instant Kit (inc. 4 x G5 Turret Ultra Cameras + 1TB HDD)

Manufacturer

Ubiquiti

Quality

Retail Packed

Part Type

CCTV Camera, NVR, Hard Drive

Other Information

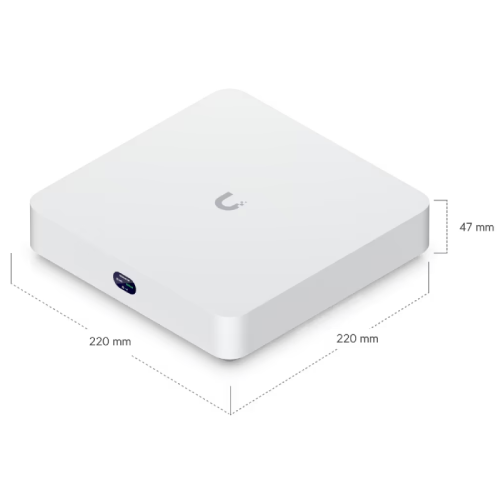

Dimensions
220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
Managed Cameras
(15) HD (8) 2K (6) 4K
Managed Access Hubs
50
Storage Capacity
(1) 3.5" drive bay
Data Protection
✓
Vantage Point
✓
Networking Interface

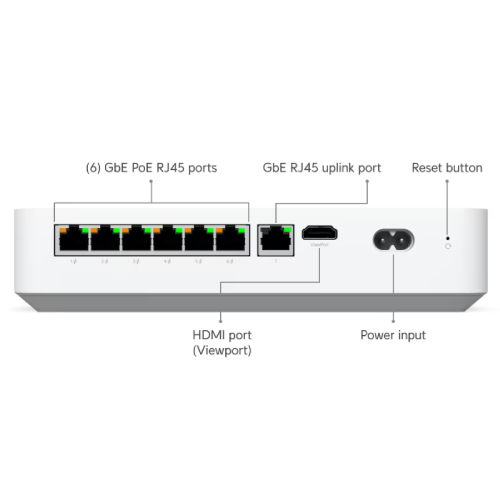

(1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport)
Form Factor
Compact Desktop
Mounting
Wall, Din rail mount (Included)
Door Access Support
✓
Management Application
UniFi Protect UniFi Access UniFi Connect

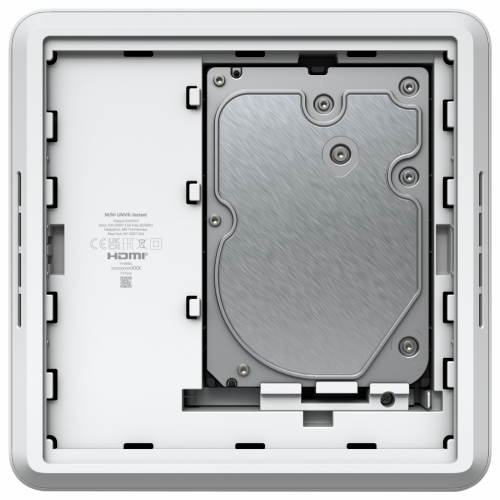

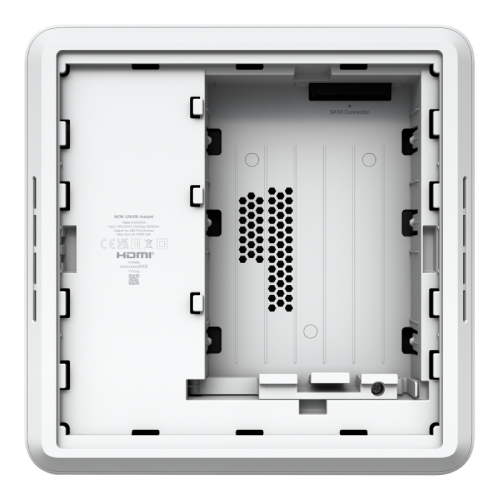

Hard Drive Capacity
(1) 3.5" HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W
Power Method
Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 60W
PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44–57V
Processor
Quad-core ARM® Cortex®-A55 at 1.7 GHz
Memory
4 GB
Management
Ethernet Bluetooth

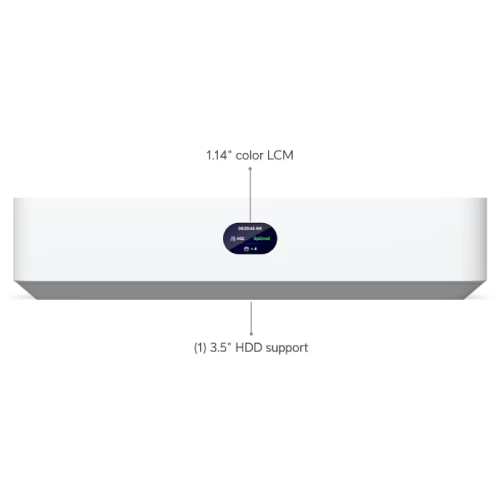

Display
1.14" screen
Weight
1.04 kg (2.3 lb)
Enclosure Materials
Polycarbonate
Mount Material
Polycarbonate
LEDs
Ethernet
✓
PoE
✓
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE, Electrical Safety
Dimensions

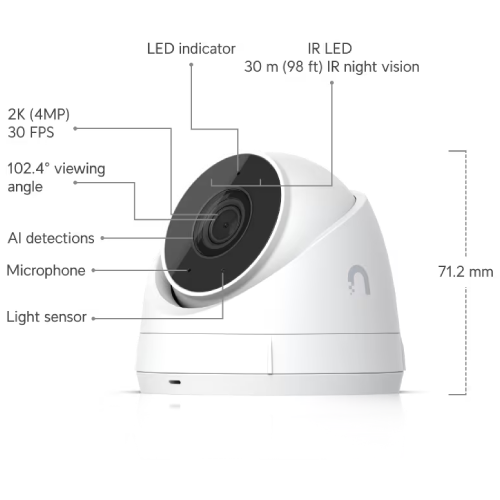

⌀90 x 71.2 mm (⌀3.5 x 2.8")
IR Night Vision
30 m (98 ft)
Smart Detections (People, Vehicles, Animals)
✓
Resolution
2K
Field of View
H: 102.4°, V: 54.9°, D: 120.6°
Audio
Microphone

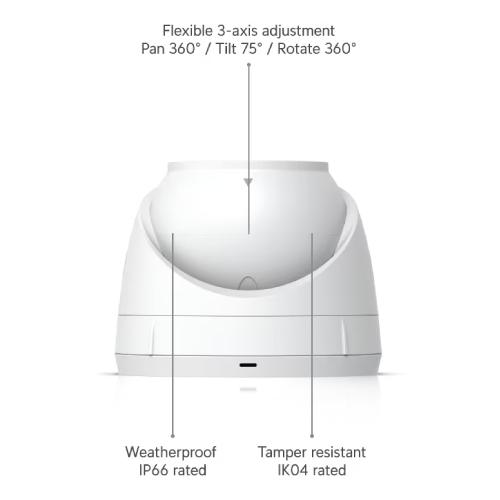

Weatherproofing
IP66
Tamper Resistance
IK04

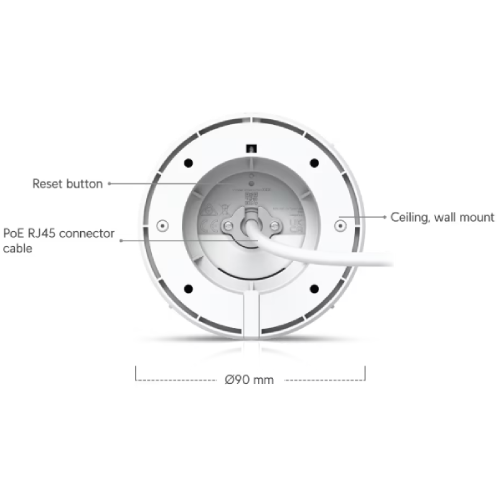

Mounting
Wall, ceiling mount (Included) Junction box, arm mount (Optional)
Networking Interface
10/100 MbE RJ45 port
Video
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate
30 FPS
Resolution
4MP 2688 x 1512 (16:9)
Optics
Sensor
1/2.4" CMOS
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter
Max. Power Consumption
4W
Supported Voltage Range
37—57V DC
Power Method
PoE
Processor
Dual-core Arm® Cortex®-A7 based chip
Weight
330 g (11.6 oz)
Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate
Mount Material
Polycarbonate
Button
(1) Factory reset
Cable
Cable Connector Type
RJ45
Cable Diameter
5 mm (0.2")
Cable Length
30 cm (1 ft)
Jacket Material
Polycarbonate
Jacket Enclosure Dimensions
⌀20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material
Thermoplastic elastomer, polycarbonate, silicone rubber
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
0 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC

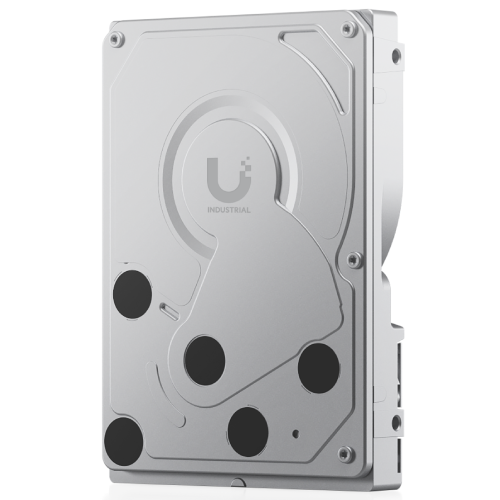

Dimensions
147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
Hard Disk Form Factor
3.5-inch
Weight
0.45 kg (0.99 lb)
Storage Capacity
1 TB
Power Method
5V/12V input
Management Interface
SATA 6 Gb/s
Rotation Speed
5400 RPM
Workload Rating
180 TB/year
Mean Time Between Failure (MTBF)
1,000,000 h
Ambient Operating Temperature
0 to 65° C (32 to 149° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, CE, TUV, RCM, KC, BSMI
